Weight
&
Measure


More Information

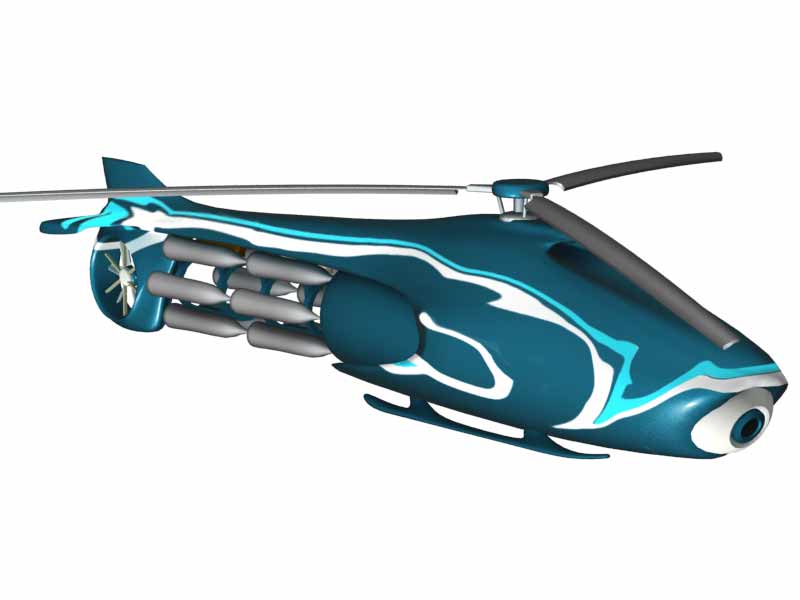

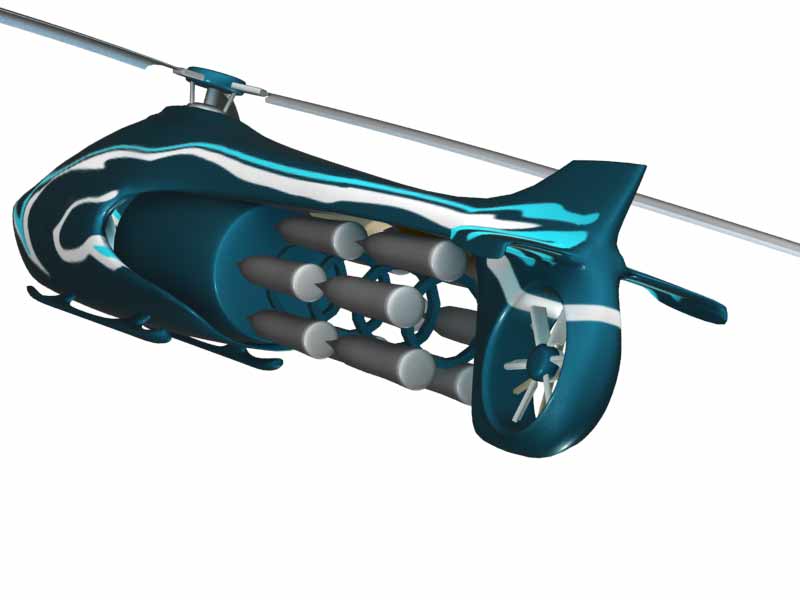

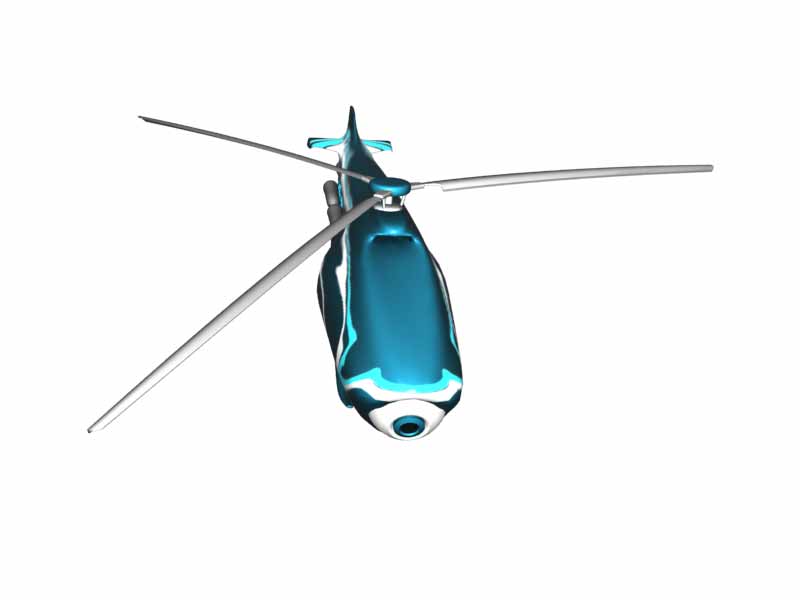

Length 7.6ft = 91.2" = 231.648 cm Length
Velocity agile Velocity
Weight 500 lbs = 200 kg Weight
Minimum speed 3 mph = 5 km/h Minimum Speed
Diameter 1.1 ft = 13.2" = 33.528 cm Diameter
The diameter of the main rotor head 0.50 UAV Diameter Diameter Main Rotor Head
Manoeuvring agile & aggressive, low altitudes, tight places Mission Profile
Fuel LH2 (Liquid Hydrogen) + BIO + standard fuels Fuel (LH2)
The maximum HP of the engine 30 HP Maximum HP Engine
Minimum tank 25 liters = ca. 6.6 US gal Minimum Tank
The RPM of the engine 3000 - 5000 RPM Engine
Vision mimics dragonfly, has a gimbal Vision
Maximum speed 60 mph = 100 km/h Maximum Speed
Tank Liquid Hydrogen (LH2) tank or normal Tank
The volume of the tank 12 U.S. gallons = 50 liters = 50 000 cm3 Volume Tank
ΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞ ΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞ ΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞ

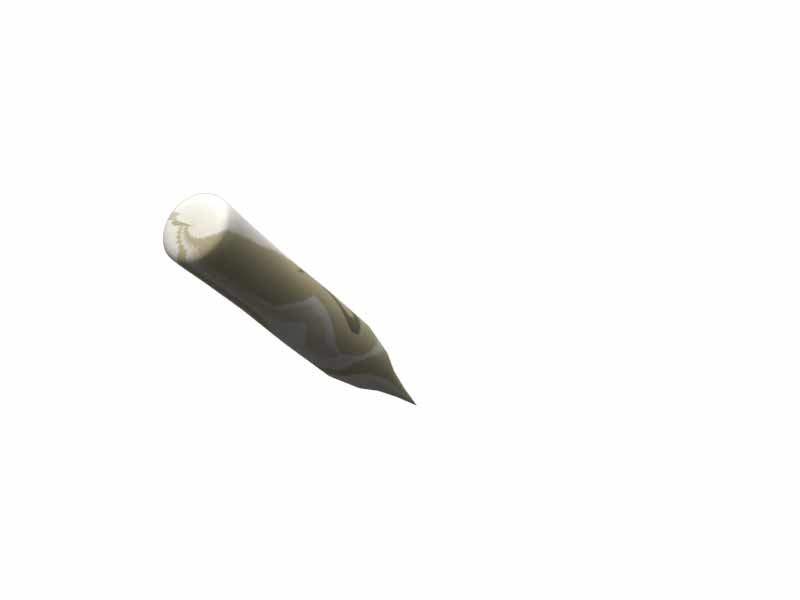

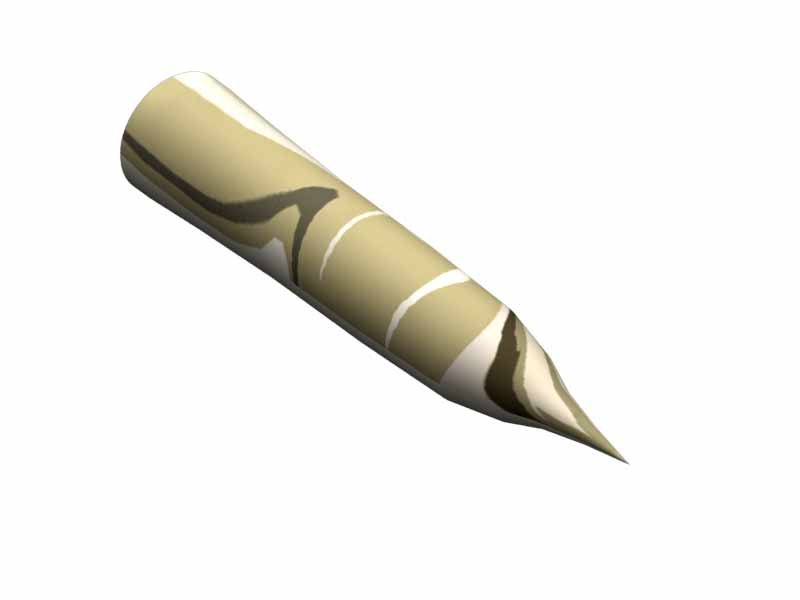

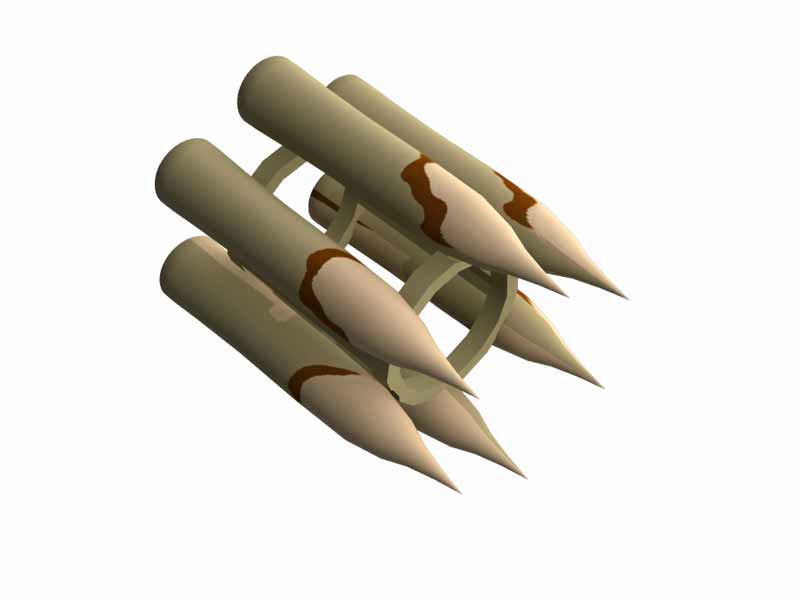

Sensor

Weight
&
Measure


More Information
Dimension 764 cm3 = 0.2 gal Dimension
Length 28.96 cm = 11.4 inch = 0.95 ft Length
Weight 1.2 kg / 1.243 l 0.764 l = 0.738 kg Weight
Cartridge MH2 tank & fuel cell Fuel Cell
MH2 tank metal hybride H2 storage MH2 Tank
Radius 2.9 cm = 1.14 inch = 0.095 ft Radius
Fuel cell weight cartridge weight Weight
